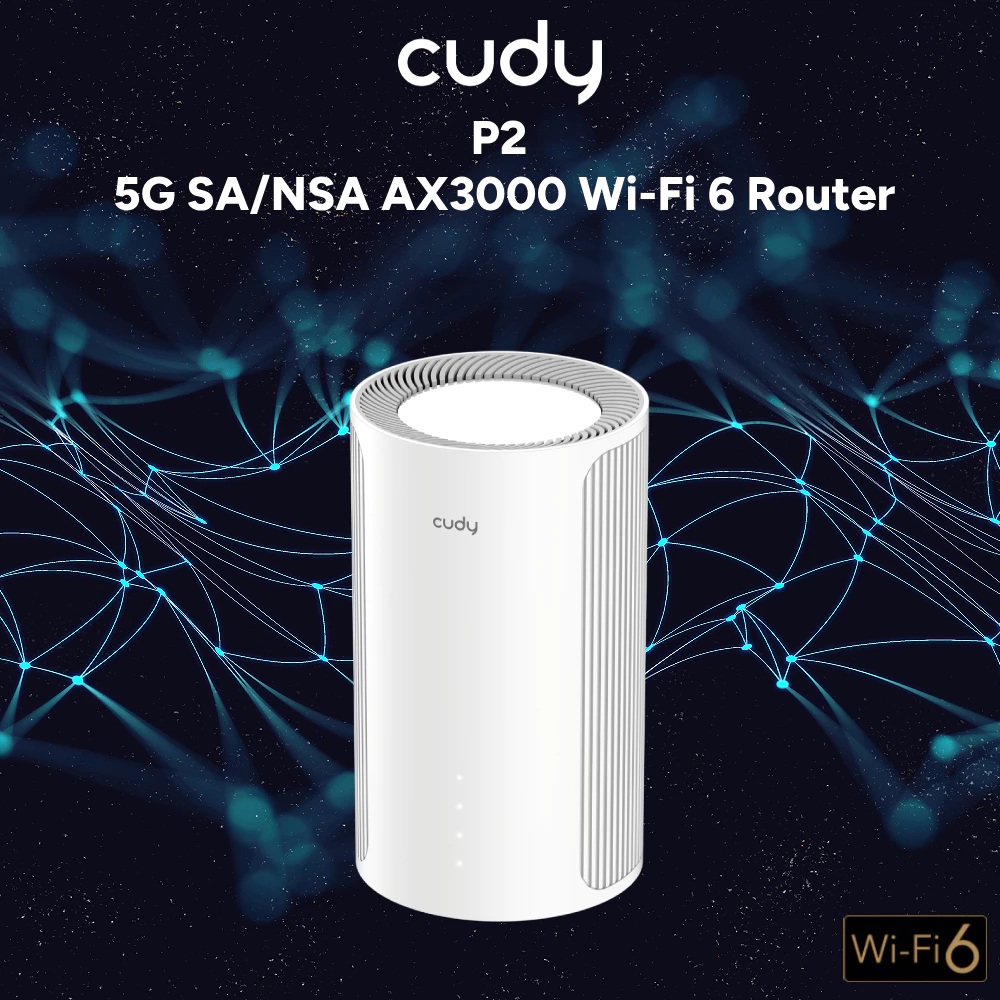

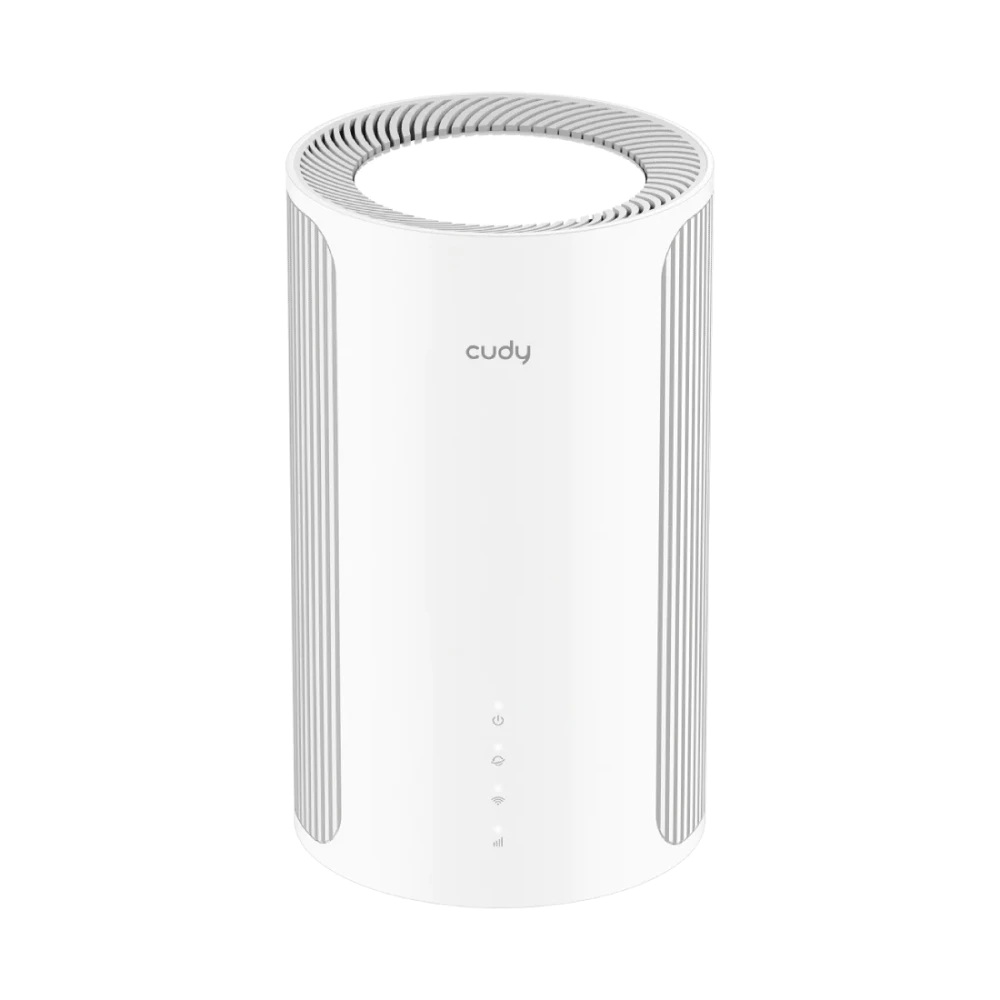

【 Cudy P2 - 5G SA/NSA AX3000 (1.0) 】
-3 Years Local Warranty
A 5G WiFi 6 router with a max 2.6 Gbps download speed. It features one SIM slot, a high-capacity AX3000 WiFi 6 for high-speed internet. The ISP clients can add a RJ11 port for VoIP/VoNR service.
KEY FEATURES:
• 5G Rel. 15 with Max 2.6 Gbps DL 1
• 5G/4G Dual Connectivity, 4×4 MIMO
• 4-Stream Dual-Band Wi-Fi 6
• 2402 Mbps + 574 Mbps Wi-Fi 2
• 2× Gigabit Ethernet Ports
• 1× Nano SIM Slot
• Cudy Mesh, VPN Server and Client
• Cudy App, Cloud Control
WHAT'S IN BOX:
• P2
• Power Adapter
• Ethernet Cable
• Installation Guide
|
Features: • Model Version: P2 1.0 • CPU Details:1.3 GHz Dual-Core, ARM Cortex-A53 • Memory/Storage: -Flash/ROM128 MB (1 Gbit) NAN -DDDR/RAM256 MB (2 Gbit) DDR3 Cellular • Cellular Standards: 5G Rel. 15, DL 4G Cat. 12/ UL 4G Cat. 13 • Cellular Antennas: 4× Internal, 2× SMA Connectors for Customized Antennas • Detachable Cellular Antennas Connector: SMA Female • SIM Options: 1× Nano SIM Slot, eSIM (Optional for ISP Orders) • Available Versions: EU EU Version Cellular • Suitable Region: Europe, Middle East, Africa, Asia-Pacific, Latin America • Max DL Speed: 2.6 Gbps (NSA), 2 Gbps (SA) • Max UL Speed: 650 Mbps (NSA), 1 Gbps (SA) • Advanced: 5G+4G Dual Connectivity, DL 4×4, UL 2×2 MIMO • Cellular Bands: -5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/66/77/78 -LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66 -WCDMA: B1/2/5/8 Wireless • 5 GHz Wi-Fi Speed: 2402 Mbps • 2.4 GHz Wi-Fi Speed: 574 Mbps • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) • Wi-Fi Antennas: Internal • Beamforming: True • FEM or PA/LNA: 5 GHz: 3× Internal, 2.4 GHz: 2× Internal • Range Performance: -Max: 170 m (558 ft) (Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.) • Wall Performance: -Two wooden walls with thickness 10 cm (4'') -One concrete wall with thickness 20 cm (7'') Interfaces: • Physical Buttons: WPS Button, Reset Button • Gigabit RJ45 Ports: 2 • Ethernet Notes:1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports • FXS Ports: 1× RJ11 (VoNR/VoLTE) (Optional) • LED: Power, Internet, Wi-Fi, C,ellular • Power Input: DC Jack Power • Power Methods: DC • DC Input: 12V 1.5A • Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1.5A DC • Max Power Consumption (W): 13.2W • Idle Power Consumption (W): TBD Reliability • EMC: ESD: Contact: 4kV; Air: 8kV • Environment -Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) -Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) -Operating Humidity: 10% ~ 90% non-condensing -Storage Humidity: 5% ~ 90% non-condensing • Certifications： FCC, CE Mechanical • Dimension： Φ116×202 mm • Product Weigh: 650.8 g (22.96 oz.) • Installation: Desktop |
