【 Outdoor Gigabit PoE Extender POE15 1.0 】
-3 Years Local Warranty

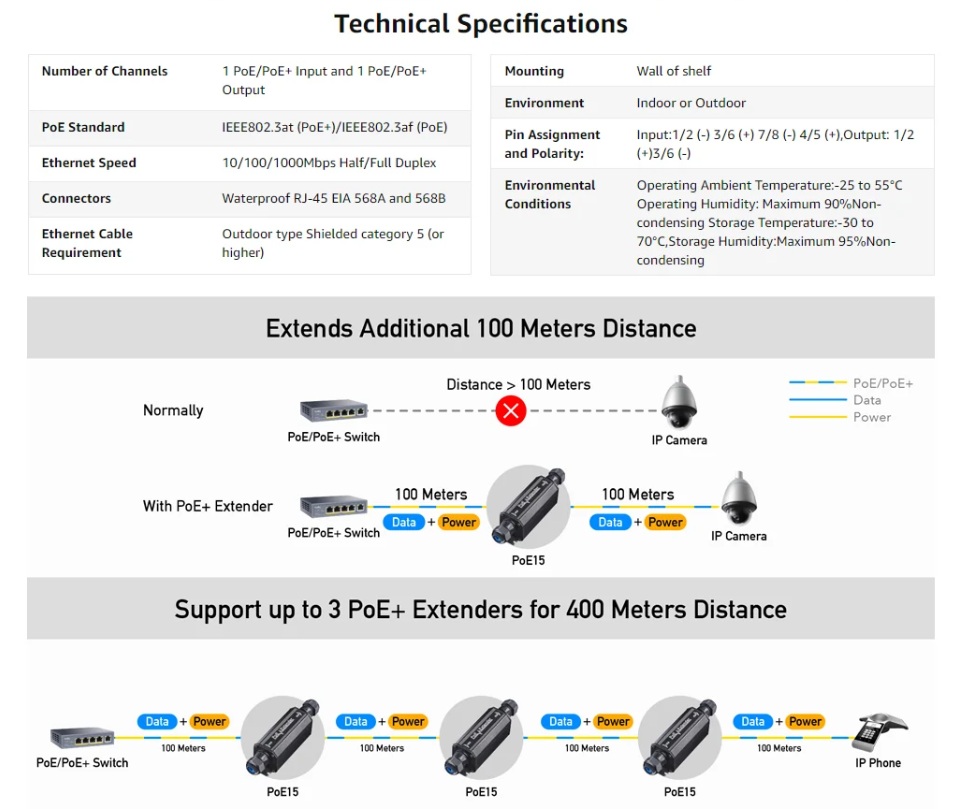

A weather-proof PoE extender that extends the PoE distance by 100m.

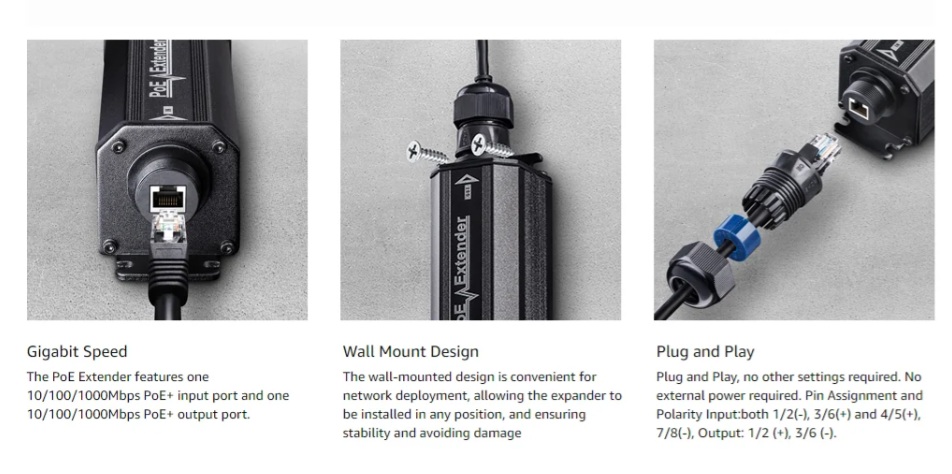

KEY FEATURES:

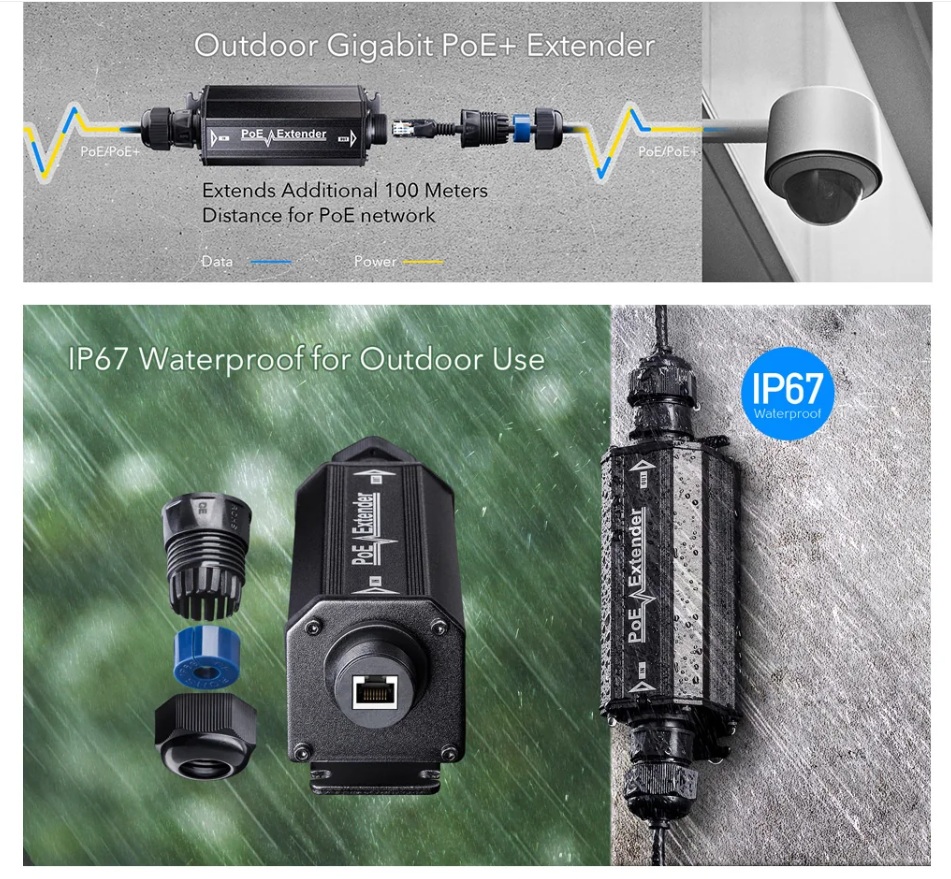

• IP67, -25~55 °C (-13~131 °F)
• GbE In, GbE Out
• 802.3at/af Input
• 802.3at/af Max 30W Output 1
• Wall-Mount
WHAT'S IN BOX:
• POE15
• Mounting Kit
• Installation Guide
|

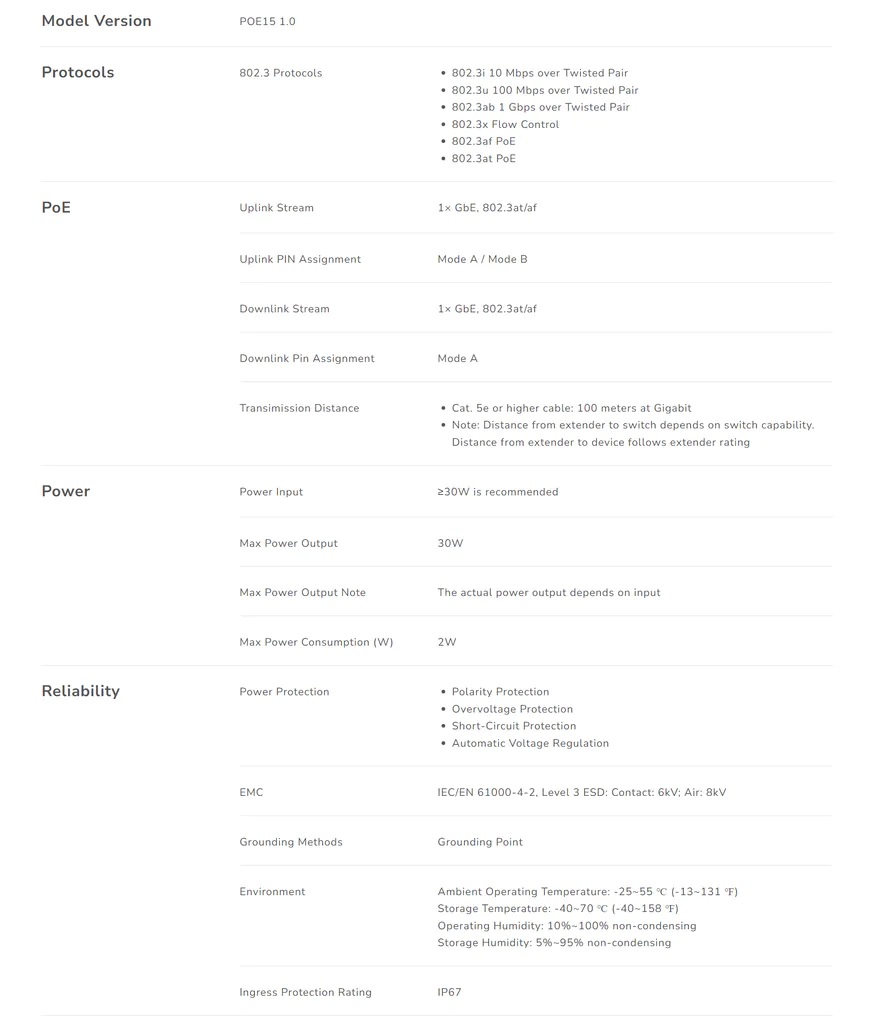

Features： • Model Version: POE15 1.0 Protocols • 802.3 Protocols: -802.3i 10 Mbps over Twisted Pair -802.3u 100 Mbps over Twisted Pair -802.3ab 1 Gbps over Twisted Pair -802.3x Flow Control -802.3af PoE -802.3at PoE PoE: • Uplink Stream: 1× GbE, 802.3at/af • Uplink PIN Assignment: Mode A / Mode B • Downlink Stream: 1× GbE, 802.3at/af • Downlink Pin Assignment: Mode A • Transimission Distance: -Cat. 5e or higher cable: 100 meters at Gigabit -Note: Distance from extender to switch depends on switch capability. Distance from extender to device follows extender rating Power • Power Input: ≥30W is recommended • Max Power Output: 30W • Max Power Output Note: The actual power output depends on input • Max Power Consumption (W): 2W Reliability • Power Protection: -Polarity Protection -Overvoltage Protection -Short-Circuit Protection • EMC: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV • Grounding Methods: Grounding Point Environment -Ambient Operating Temperature: -25~55 ℃ (-13~131 ℉) -Storage Temperature: -40~70 ℃ (-40~158 ℉) -Operating Humidity: 10%~100% non-condensing -Storage Humidity: 5%~95% non-condensing • Ingress Protection Rating: IP67 • Certifications: FCC, CE Mechanical: • Install in a Daisy Chain: Up to 3 extenders in a chain • Installation: Desktop, Wall-mount • Dimension: 185×45×45 mm • Casing Material: Metal • Product Weight: 250 g (8.82 oz.) |
